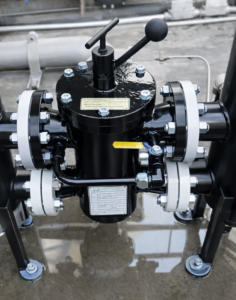

A 6-way transfer valve is a type of valve that allows fluid to be transferred from one pipe to five other pipes, or vice versa. It typically has six ports and multiple switching positions, which allows fluid to be directed from one port to another, or to be shut off completely.
6-way transfer valves are commonly used in complex piping systems that require the distribution of fluid to multiple destinations, or for applications where multiple fluid streams need to be combined into one or separated into different streams.
The configuration of a 6-way transfer valve can vary depending on the specific requirements of the application. Some 6-way transfer valves are designed with a hexagonal body, while others have a more complex geometry with multiple ports and switching positions.
6-way transfer valves can be manual, automated, or a combination of both. They can also be designed with different materials, depending on the fluid being transported, the temperature and pressure requirements, and the need for corrosion resistance.
In addition to controlling fluid flow, 6-way transfer valves can also be used to isolate and drain sections of the piping system, to prevent backflow, and to protect against overpressure and other safety hazards.
Overall, 6-way transfer valves are an important component in many industrial processes, and play a critical role in the control and management of fluid flow in complex piping systems. However, their complexity and the need for precise switching positions may make them more challenging to install, maintain, and troubleshoot compared to other types of transfer valves.
Class 150 or Class 300 ANSI Flanges, Buttweld pipe nozzles
Opposite side inline porting
Stainless steel trim
Soft seat-ZERO LEAK
Series JR-33 Value Added Features:
Patented Shoe Seal provides Zero Leakage and Zero Frictional Drag on Crossover.
Positive Patented Mechanical Lockdown – No Springs.
Exceptionally Low Pressure Drop.
Fabricated Steel Construction-Special Configurations and Dimensions are Available, Consult Factory.
“Will Fit” System-Drop In Replacements for Competitive Valves.
Stainless Steel Internal Trim and Moving Parts.
Easy Low Torque Operation-Handle Extensions are not Required.
No Lubricant Stick Required to Operate.
Pressure Ratings to 1600 P.S.I.
Flanged or Butt Weld Connection.
Compact Open Center Design.
Valve Sizes 1-1/2″ Through 8″.
Spectacle Blinds are not Required for Tight Shut-Off.
Designed and Tested per API Standards 598 & 614.
Complete In-house Testing Facility for Specials and Customer Requirements.
Specifications:
(1). Maximum temperature rating:
Polyurethane/Buna-n Seals 200° F
Buna-N 250° F
Viton* 350° F
Neoprene 250° F
(2). Minimum standard temperature rating: -20° F
(3). Maximum pressure rating, carbon steel valves (@ 200° F)
150 lb. ANSI flanged valves 260 psi
300 lb. ANSI and buttweld valves 675 psi
600 lb. ANSI and high varies by size, consult with us.
(4). Maximum pressure rating, stainless steel valves-consult us.
(5). Maximum standard differential pressure rating (inlet to outlet)
Valve sizes 1-1/2″ through 4″ 50 psi
6″ valve 23 psi **
8″ valve consult us
** A high differential pressure option is available.
*Registered DuPont Trademark
