What is a 3-way transfer valve used for?

A 3-way transfer valve is used to divert flow between two equipment trains — such as switching from a duty filter to a standby filter — without interrupting the process. The HYCOA JR-33 3-Way Transfer Valve provides zero leakage and zero frictional drag during the transfer, protecting critical equipment.

What sizes are available for the HYCOA 3-way transfer valve?

The HYCOA JR-33 3-Way Transfer Valve is available in sizes 1½″ through 8″ with Class 150 or Class 300 ANSI flanged connections. Buttweld pipe nozzle options are also available.

What is the pressure rating of the HYCOA 3-way transfer valve?

The HYCOA JR-33 3-Way Transfer Valve is rated up to 1,600 PSI. Class 150 ANSI flanged valves are rated at 260 PSI at 200°F, and Class 300 and buttweld valves are rated at 675 PSI at 200°F.

Does the 3-way transfer valve require lubrication?

No. The HYCOA JR-33 3-Way Transfer Valve requires no lubrication to operate. The patented Shoe Seal design provides zero frictional drag during crossover, and the positive mechanical lockdown requires no springs, reducing maintenance requirements.

Can the HYCOA 3-way valve replace competitive transfer valves?

Yes. The HYCOA JR-33 "Will Fit" system is designed as a drop-in replacement for competitive transfer valves including Kraissl. The valve is engineered to match existing flange bolt patterns and face-to-face dimensions.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

¿Prefiere leer en Español?Esta página está disponible en español.

Ver en Español

Home/3 Way Transfer Valves

HYCOA 3 Way Transfer Valves

Name: HYCOA 3-Way Transfer Valve — JR-33 Series
Brand: HYCOA
Availability: InStock

Zero leakage, zero frictional drag — engineered for critical fluid distribution in industrial piping systems.

What is a 3-Way Transfer Valve?

A 3-way transfer valve allows fluid to be transferred from one pipe to two other pipes. It typically has three ports and two switching positions, which allows fluid to be directed from one port to another, or to be shut off completely.

3-way transfer valves are commonly used in piping systems that require the distribution of fluid to multiple destinations, or for applications where two separate fluid streams need to be combined into one.

They can be manual, automated, or a combination of both, and can be designed with different materials depending on the fluid being transported, temperature and pressure requirements, and the need for corrosion resistance.

In addition to controlling fluid flow, 3-way transfer valves can also be used to isolate and drain sections of the piping system, prevent backflow, and protect against overpressure and other safety hazards.

Request Price & Delivery

HYCOA 3-Way Transfer Valve

JR-33 Series · Zero Leakage Design

Technical Specifications

Flange Rating	Standard Class 150# or 300# ASME B16.5
Connection Options	Flanged or Optional Buttweld Pipe Nozzles
Body Material	Carbon Steel (Standard) / Stainless Steel (Optional)
Shaft Material	Stainless Steel (Standard)
Sealing	Soft Seat Elastomer Sealing Pads — Zero Leak Design
Pressure Rating	Up to 1,600 PSI
Sizes	1½″ through 8″
Custom Designs	Available — Consult Factory

HYCOA 3 Way Valve Features

Patented Shoe Seal provides Zero Leakage and Zero Frictional Drag on Crossover

Positive Patented Mechanical Lock-down – No Springs

Exceptionally Low Pressure Drop

Fabricated Steel Construction — Special Configurations Available

"Will Fit" System — Drop-In Replacements for Competitive Valves

Stainless Steel Internal Trim and Moving Parts

Easy Low Torque Operation — Handle Extensions Not Required

No Lubricant Required to Operate

Pressure Ratings to 1600 PSI

Flanged or Butt Weld Connection

Compact Open Center Design

Valve Sizes 1½″ Through 8″

Spectacle Blinds Not Required for Tight Shut-Off

Designed and Tested per API Standards 598 & 614

Complete In-house Testing Facility

HYCOA 3 Way Valve Dimensions

Approximate dimensions in inches. All sizes available with Class 150# or 300# ANSI flanges.

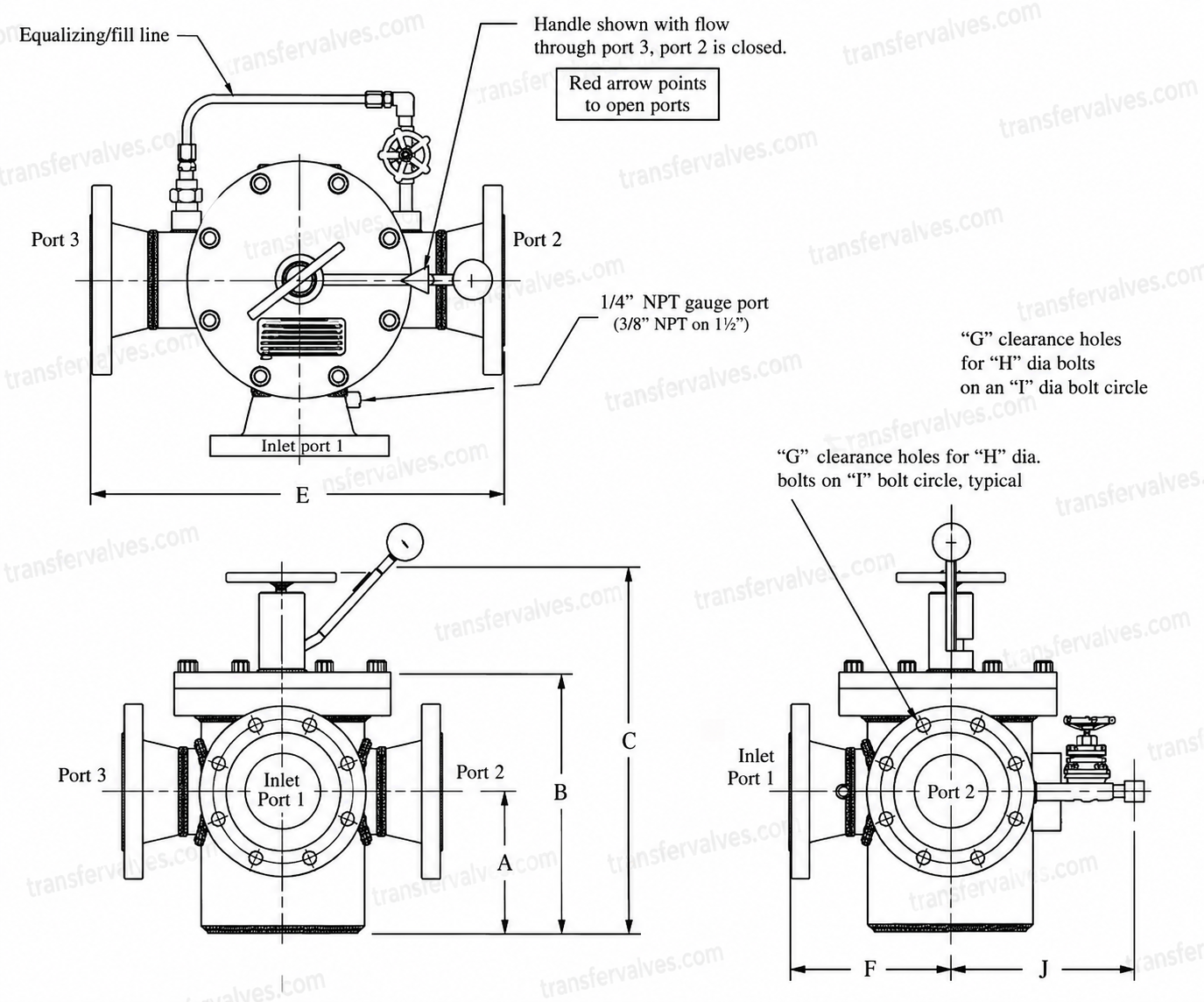

HYCOA 3-Way Transfer Valve dimensional drawing — front, top, and side views with labeled dimensions A through J

Size	A	B	C	D*	E	G (150#)	G (300#)	H (150#)	H (300#)	I (150#)	I (300#)	Weight
1½″	4-7/16″	9-1/16″	14-13/16″	N/A	10″	4	4	1/2″	3/4″	3-7/8″	4-1/2″	49 lbs
2″	4-7/16″	9-1/16″	14-13/16″	N/A	12″	4	8	5/8″	5/8″	4-3/4″	5″	64 lbs
3″	5-3/4″	10-3/4″	16-1/2″	N/A	14″	4	8	5/8″	3/4″	6″	6-5/8″	104 lbs
4″	7-3/8″	13-5/8″	20-1/2″	N/A	21″	8	8	5/8″	3/4″	7-1/2″	7-7/8″	165 lbs
6″	8-3/8″	16-7/8″	21-15/16″	N/A	26″	8	12	3/4″	3/4″	9-1/2″	10-5/8″	301 lbs

*D = "J" minimum distance — consult factory for specific application

G = Number of bolt holes · H = Bolt hole diameter · I = Bolt circle diameter

Frequently Asked Questions

3-Way Transfer Valve Model Numbers

Carbon Steel (J3C…) and Stainless Steel (J3S…) · Sizes 1½″ – 8″. Contact factory for pricing and availability.

Carbon Steel Models (J3C…)

Model Number	Size
J3CBXS24BSX	1½″
J3CVXS24BSX	1½″
J3CNXS24BSX	1½″
J3CBXS32BSX	2″
J3CVXS32BSX	2″
J3CNXS32BSX	2″
J3CBXS48BSX	3″
J3CVXS48BSX	3″
J3CNXS48BSX	3″
J3CBXS64BSX	4″
J3CVXS64BSX	4″
J3CNXS64BSX	4″
J3CBXS96BSX	6″
J3CVXS96BSX	6″
J3CNXS96BSX	6″
J3CBXS128BSX	8″
J3CVXS128BSX	8″
J3CNXS128BSX	8″

Stainless Steel Models (J3S…)

Model Number	Size
J3SBXS24BSX	1½″
J3SVXS24BSX	1½″
J3SNXS24BSX	1½″
J3SBXS32BSX	2″
J3SVXS32BSX	2″
J3SNXS32BSX	2″
J3SBXS48BSX	3″
J3SVXS48BSX	3″
J3SNXS48BSX	3″
J3SBXS64BSX	4″
J3SVXS64BSX	4″
J3SNXS64BSX	4″
J3SBXS96BSX	6″
J3SVXS96BSX	6″
J3SNXS96BSX	6″
J3SBXS128BSX	8″
J3SVXS128BSX	8″
J3SNXS128BSX	8″

Pressure drop curves and dimensional drawings available upon request. Contact Northeast Controls Inc. for application engineering, sizing, and pricing.

Typical Applications

Duplex lube oil filter systems

Duplex fuel oil filter systems

Duplex oil cooler circuits

ASME strainer change-over

API lube oil unit protection

Turbine lube oil systems

Hydraulic power unit filter circuits

Marine and offshore lube oil systems

Replacement Shoes & Soft Parts Kits

HYCOA's patented resilient sealing shoe is the key to zero-leak performance. Replacement shoes and complete soft parts kits are available for all valve sizes.

Replacement Shoes — Buna & Viton

Part Number	Elastomer	Size
220-2-0032-012	Buna	1½″
220-2-0032-014	Viton	1½″
220-2-0032-012	Buna	2″
220-2-0032-014	Viton	2″
220-2-0048-012	Buna	3″
220-2-0048-051	Buna	3″
220-2-0048-014	Viton	3″
220-2-0048-052	Viton	3″
220-2-0064-012	Buna	4″
220-2-0064-014	Viton	4″
220-2-0080-012	Buna	4″
220-2-0080-014	Viton	4″
220-2-0096-012	Buna	6″
220-2-0096-014	Viton	6″
220-2-0128-012	Buna	8″
220-2-0128-014	Viton	8″

Stack assembly tools required for shoe installation. Order the correct tool for your valve size.

Stack Assembly Tools

Part Number	Description	Size
H41L-10221	Stack Assembly Tool	1½″ & 2″
H41L-10222	Stack Assembly Tool	3″
H41L-10223	Stack Assembly Tool	4″
H41L-10224	Stack Assembly Tool	6″

Soft Parts Kits — Standard Series Valves

Part Number	Description	Size
220-2-0032-083	Bolted Bonnet / Buna	1½″ & 2″
220-2-0032-085	Bolted Bonnet / Viton	1½″ & 2″
220-2-0032-011	Victaulic / Buna	1½″ & 2″
220-2-0032-015	Victaulic / Viton	1½″ & 2″
220-2-0048-083	Bolted Bonnet / Buna	3″
220-2-0048-085	Bolted Bonnet / Viton	3″
220-2-0048-011	Victaulic / Buna	3″
220-2-0048-015	Victaulic / Viton	3″
220-2-0064-083	Bolted Bonnet / Buna	4″
220-2-0064-085	Bolted Bonnet / Viton	4″
220-2-0064-011	Victaulic / Buna	4″
220-2-0064-015	Victaulic / Viton	4″
220-2-0096-083	Bolted Bonnet / Buna	6″
220-2-0096-085	Bolted Bonnet / Viton	6″
220-2-0096-011	Victaulic / Buna	6″
220-2-0096-015	Victaulic / Viton	6″
220-2-0128-083	Bolted Bonnet / Buna	8″
220-2-0128-085	Bolted Bonnet / Viton	8″

Complete soft parts kits include all elastomeric seals and wear components for a full valve rebuild. Available for Bolted Bonnet and Victaulic end connections in Buna or Viton elastomers.

To order spare parts: Contact Northeast Controls Inc. at 201-419-6111 or [email protected] with your valve size and model number.
