HYCOA Transfer Valves
Patented Shoe Seal · Zero Leakage · Zero Frictional Drag
The original JR-33 Series transfer valve — engineered for critical fluid distribution in industrial piping systems where failure is not an option.
Patented Shoe Seal Lockdown Technology
Unlike traditional O-ring designs, HYCOA JR-33 valves use a patented Shoe Seal Lockdown mechanism that retracts during crossover to eliminate friction and wear — then locks securely into place to provide engineered zero leakage.
Designed for duplex filtration systems and demanding industrial processes, HYCOA valves allow smooth transfer between flow paths without shutdown, pressure loss, or leakage. Available in carbon steel or stainless steel, with flanged or butt weld connections, and tested to API 598 & 614 standards.

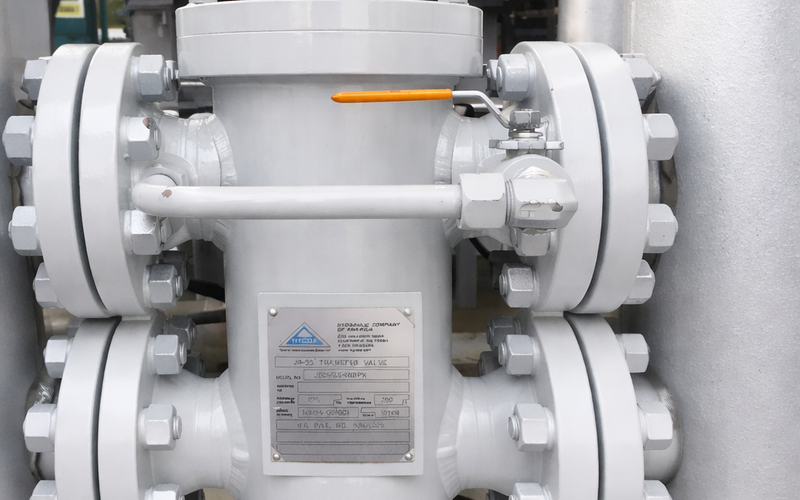

HYCOA JR-33 Transfer Valve
Available 1½″ through 8″ · ANSI 150# & 300#
Why HYCOA?
Engineering advantages built into every JR-33 Series valve.
Zero-Leak Shutoff
Patented Shoe Seal Lockdown provides engineered zero leakage — no O-rings, no spectacle blinds required.
Continuous Flow Operation
Transfer between flow paths without interrupting system operation or depressurizing the line.
Low Torque, Low Wear
Retractable elastomer seals eliminate friction during transfer, extending seal life significantly.
Field Serviceable
All internal components are field-replaceable. Spare shoe assemblies, seal kits, and stack assemblies available.
Standard Features
Every HYCOA JR-33 Transfer Valve ships with these capabilities as standard.
Available Configurations
Select a configuration for detailed specifications, dimensions, and model numbers.
3-Way
Single-stream diverter for duplex filter and cooler switching. The most common transfer valve configuration.
Sizes: 1½″ – 8″
View specs →3-Way Twin-Pak
Two 3-way valve bodies mechanically linked — both circuits switch simultaneously with one operator action.
Sizes: 1½″ – 6″
View specs →6-Way Inline
Straight-through active flow path — lowest pressure drop. Preferred for turbine lube oil and compressor seal oil systems.
Sizes: 1½″ – 8″
View specs →6-Way Same-Side
Inlet and both outlets on the same side. The most popular 6-way configuration for compact installations.
Sizes: 1½″ – 8″
View specs →6-Way Opposite-Side
Inlet on one side, outlets on the opposite side — ideal for straight-through piping arrangements.
Sizes: 1½″ – 8″
View specs →Typical Applications
HYCOA transfer valves are specified for critical fluid systems across industries.
HYCOA Transfer Valve FAQs
Ready to Specify a HYCOA Valve?
Use the Model Number Configurator to build your exact specification, or contact Northeast Controls for pricing and delivery.
