JR-33 Series — Twin Pack Configuration
HYCOA Twin 3 Way Transfer Valve
Dual-circuit linked configuration for complex fluid distribution requirements in turbine and lube oil systems. Zero leakage, zero frictional drag.
Twin Pack Configuration
The HYCOA JR-33 Twin 3-Way Transfer Valve links two 3-way valve bodies into a single mechanically coupled unit. Both valves operate simultaneously from a single handle, ensuring synchronized switching between flow paths in dual-circuit piping systems.
Commonly used in turbine lube oil systems, API 614 skids, and other applications requiring simultaneous transfer of two separate fluid circuits. The twinpack eliminates the need for separate valve operators and reduces the risk of operator error.
Available with Class 150 or Class 300 ANSI flanges, or optional buttweld pipe nozzles. Opposite-side inlet/outlet porting is standard. Stainless steel internal trim throughout.
JR-33 Twinpack — Twin 3-Way Valve
Synchronized dual-circuit switching
Product Features

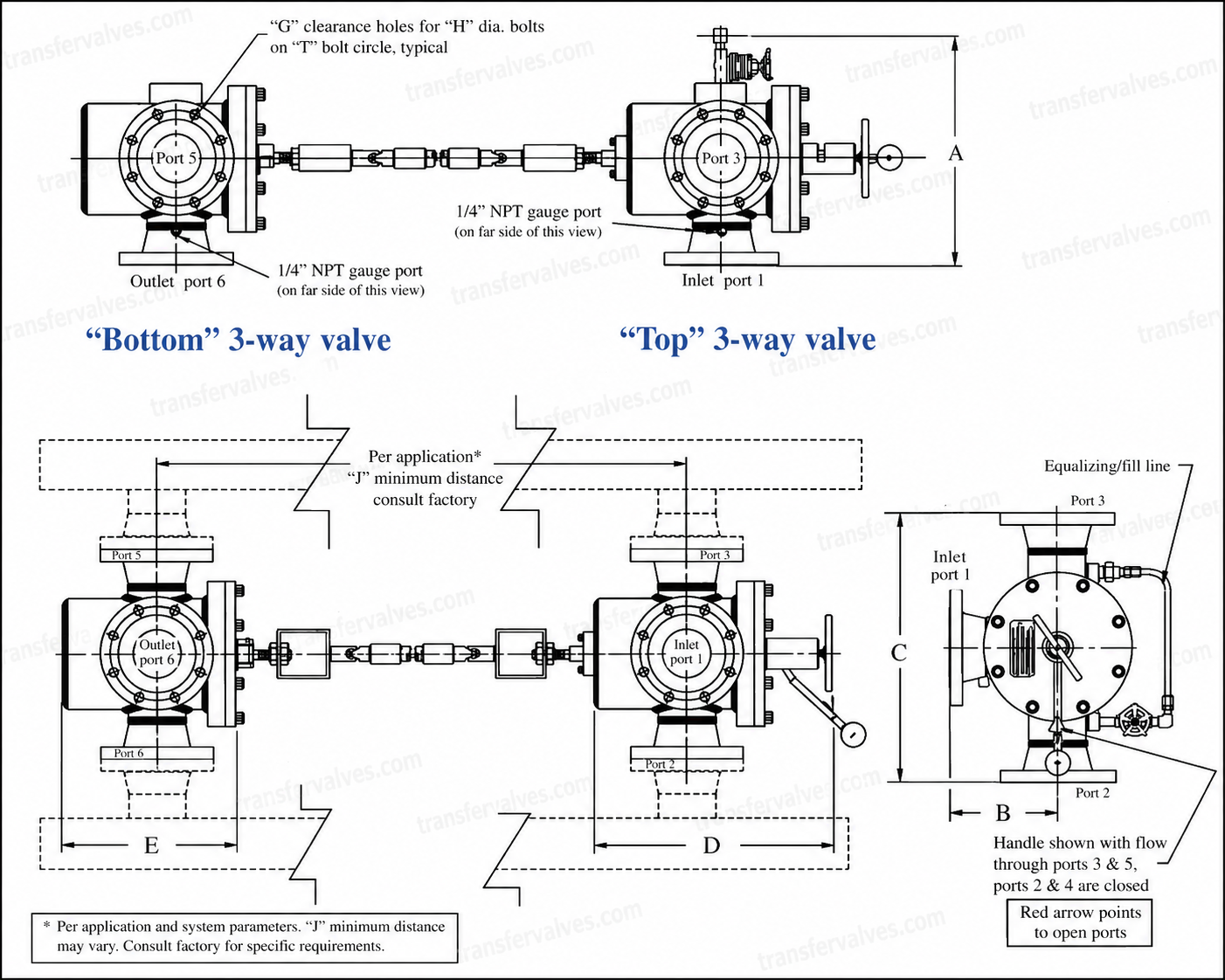

Approximate Dimensions (inches)
All sizes available with Class 150# or 300# ANSI flanges.
| Size | A | B | C | D* | E | G (150#) | G (300#) | H (150#) | H (300#) | I (150#) | I (300#) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1½″ | 13″ | 5″ | 10″ | 14 13/16″ | 9 1/16″ | 4 | 4 | ¾″ | ¾″ | 3 7/8″ | 4 ½″ | 100 lbs |
| 2″ | 15″ | 7″ | 12″ | 16 ½″ | 10 ¾″ | 4 | 8 | 5/8″ | 5/8″ | 4 ¾″ | 5 5/8″ | 128 lbs |
| 3″ | 17″ | 7″ | 14″ | 16 ½″ | 10 ¾″ | 4 | 8 | ¾″ | ¾″ | 6″ | 6 5/8″ | 208 lbs |
| 4″ | 17″ | 8 3/8″ | 21″ | 19 ½″ | 13 3/8″ | 8 | 8 | ¾″ | ¾″ | 7 ½″ | 7 5/8″ | 330 lbs |
| 6″ | 17″ | 9 7/8″ | 26″ | 21 15/16″ | 15 1/16″ | 8 | 12 | ¾″ | ¾″ | 9 ½″ | 10 5/8″ | 600 lbs |
*D = "J" minimum distance — consult factory for specific application
G = Number of bolt holes · H = Bolt hole diameter · I = Bolt circle diameter
Bill of Materials — JR-33 Transfer Valve
| Mark | Description | Material |
|---|---|---|
| 1 | Control Rod, Upper Twinpack | Stainless Steel |
| 2 | Control Rod, Lower Twinpack | Stainless Steel |
| 3 | Sleeve Assembly, Twinpack | Stainless Steel |
| 4 | Bushing Assembly, Lower Twinpack | Stainless Steel |
| 5 | Shoe Assembly | Varies per application |
| 6 | Side | Stainless Steel |
| 7 | Link | Stainless Steel |
| 8 | Operator Handle Assembly (Ball Handle) | Steel |
| 9 | Ball Pin | Stainless Steel |
| 10 | Bushing Assembly, Upper Twinpack | Stainless Steel |
| 11 | Seal Retainer | Varies per application |
| 12 | Lip Seal – Shaft | Varies per application |
| 13 | Seal Retainer, Lever Weldment (Tie Handle) | Stainless Steel |
| 14 | Setscrew O-Ring | Varies per application |
| 15 | Bushing O-Ring | Varies per application |
| 17 | Universal Joint Assembly | Varies per application |
* Material varies per application based on desired operating temperature/pressure. Options include: Cast Iron, Steel, Stainless Steel, Bronze, Polyurethane, Delrin, Lubricthane, Nitrile (Buna), Viton, Neoprene.
Frequently Asked Questions
Twin-Pak Model Numbers
Carbon Steel (JLC…) and Stainless Steel (JLS…) · Simultaneous dual-circuit switching · Sizes 1½″ – 8″
Carbon Steel Twin-Pak (JLC…)
| Model Number | Size |
|---|---|
| JLCBXS24BSX | 1½″ |
| JLCVXS24BSX | 1½″ |
| JLCNXS24BSX | 1½″ |
| JLCBXS32BSX | 2″ |
| JLCVXS32BSX | 2″ |
| JLCNXS32BSX | 2″ |
| JLCBXS48BSX | 3″ |
| JLCVXS48BSX | 3″ |
| JLCNXS48BSX | 3″ |
| JLCBXS64BSX | 4″ |
| JLCVXS64BSX | 4″ |
| JLCNXS64BSX | 4″ |
| JLCBXS96BSX | 6″ |
| JLCVXS96BSX | 6″ |
| JLCNXS96BSX | 6″ |
| JLCBXS128BSX | 8″ |
| JLCVXS128BSX | 8″ |
| JLCNXS128BSX | 8″ |
Stainless Steel Twin-Pak (JLS…)
| Model Number | Size |
|---|---|
| JLSBXS24BSX | 1½″ |
| JLSVXS24BSX | 1½″ |
| JLSNXS24BSX | 1½″ |
| JLSBXS32BSX | 2″ |
| JLSVXS32BSX | 2″ |
| JLSNXS32BSX | 2″ |
| JLSBXS48BSX | 3″ |
| JLSVXS48BSX | 3″ |
| JLSNXS48BSX | 3″ |
| JLSBXS64BSX | 4″ |
| JLSVXS64BSX | 4″ |
| JLSNXS64BSX | 4″ |
| JLSBXS96BSX | 6″ |
| JLSVXS96BSX | 6″ |
| JLSNXS96BSX | 6″ |
| JLSBXS128BSX | 8″ |
| JLSVXS128BSX | 8″ |
| JLSNXS128BSX | 8″ |
Pressure drop curves and dimensional drawings available upon request. Contact Northeast Controls Inc. for application engineering, sizing, and pricing.
Twin-Pak Soft Parts Kits
Complete rebuild kits for Twin-Pak valves — Bolted Bonnet, Buna or Viton elastomers.
Twin-Pak Soft Parts Kits
| Part Number | Description | Size |
|---|---|---|
| 220-2-0032-089 | Bolted Bonnet / Buna | 1½″ & 2″ |
| 220-2-0032-093 | Bolted Bonnet / Viton | 1½″ & 2″ |
| 220-2-0048-089 | Bolted Bonnet / Buna | 3″ |
| 220-2-0048-093 | Bolted Bonnet / Viton | 3″ |
| 220-2-0064-089 | Bolted Bonnet / Buna | 4″ |
| 220-2-0064-093 | Bolted Bonnet / Viton | 4″ |
| 220-2-0096-089 | Bolted Bonnet / Buna | 6″ |
| 220-2-0096-093 | Bolted Bonnet / Viton | 6″ |
To order spare parts: Contact Northeast Controls Inc. at 201-419-6111 or [email protected] with your valve size and model number.
Related Products
Need a Quote or Technical Consultation?
Our team can help you select the right twinpack configuration and provide drop-in replacement options for your existing system.
