What is a HICORP transfer valve?

HICORP transfer valves are industrial diverter valves designed for continuous-flow switching between two equipment trains — such as filters, coolers, or pumps — without shutting down the system. They use positive mechanical shoe seals for zero-leak shutoff and are available in 3-way and 6-way configurations.

What sizes are available for HICORP transfer valves?

HICORP transfer valves are available in sizes 2″ through 12″ with Class 150 or Class 300 ANSI flanged connections. Larger sizes and special configurations are available — consult factory.

What is the pressure rating of HICORP transfer valves?

HICORP transfer valves with Class 150 ANSI flanges are rated at 260 PSI at 200°F. Class 300 configurations are rated at 675 PSI at 200°F. High-pressure configurations are available upon request.

What industries use HICORP transfer valves?

HICORP transfer valves are used in power generation, oil and gas, refining, petrochemical processing, and industrial manufacturing. Common applications include turbine lube oil systems, compressor seal oil, hydraulic control systems, and duplex filter switching.

Do HICORP transfer valves require lubrication or maintenance?

No. HICORP transfer valves require no lubrication to operate. The shoe seal design provides zero frictional drag during crossover, and the positive mechanical lockdown requires no springs. Routine maintenance is minimal — spare parts kits are available from Northeast Controls.

Can HICORP valves replace existing transfer valves in my system?

Yes. HICORP transfer valves are available in standard ANSI flange sizes and can be configured to match existing face-to-face dimensions. Contact Northeast Controls with your current valve model number and size for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

¿Prefiere leer en Español?Esta página está disponible en español.

Ver en Español

Home/HICORP Transfer Valves

Hydraulic Industrial Corporation of America

HICORP Transfer Valves

Name: HICORP Transfer Valve
Brand: HICORP
Availability: InStock

Continuous Flow · Zero Leakage · Industrial-Duty Reliability

Engineered for critical applications where uninterrupted flow and absolute sealing integrity are required — without shutdown, pressure loss, or leakage.

Request a Quote 201-419-6111

Positive Mechanical Shoe-Seal Technology

Unlike traditional O-ring designs, HICORP valves utilize a positive mechanical shoe-seal system that retracts during changeover to eliminate friction and wear — then locks securely into place to provide true "No-Leak" shutoff.

Designed for duplex filtration systems and demanding industrial processes, these valves allow smooth transfer between flow paths without shutdown, pressure loss, or leakage. Replacement components are fully interchangeable with HYCOA JR-33 style valves, simplifying spare parts management.

API 614 Compliant

Field Replaceable Internals

HYCOA-Compatible Spare Parts

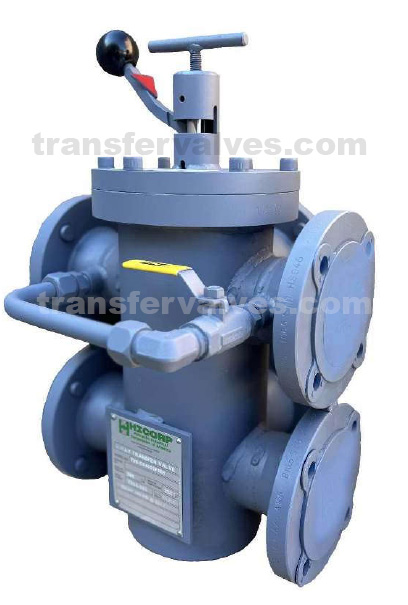

HICORP 6-Way Transfer Valve

Available 1½″ through 8″ · ANSI 150# & 300#

Standard Features

Every HICORP Transfer Valve ships with these capabilities as standard.

Low pressure drop

Positive "No-Leak" sealing design

Stainless steel operating shaft and internal mechanism

Low operating torque

No spectacle blinds required

Designed and tested per API 614

Flanged and butt weld connections available

Pressure ratings up to 675 PSI

Replacement parts interchangeable with HYCOA JR-33 valves

Available replacement shoe assemblies, seal kits, and stack assemblies

Key Advantages

Five engineering advantages that make HICORP the trusted choice for critical industrial service.

Zero-Leak Shutoff

Positive mechanical shoe seals provide tight isolation without O-rings or spectacle blinds.

Continuous Flow Operation

Change flow paths without interrupting system operation or depressurizing the line.

Low Torque, Low Wear Design

Retractable elastomer seals eliminate friction during transfer, extending seal life significantly.

Low Pressure Drop

Optimized internal flow paths improve efficiency and overall system performance.

API 614 Compliant

Suitable for critical oil & gas and process industry applications requiring compliance.

Valve Configurations

HICORP Transfer Valves are available in multiple configurations to match your piping layout:

6-Way Same-Side Continuous Flow
6-Way Opposite-Side Continuous Flow
6-Way Inline Continuous Flow
6-Way Split Transfer
3-Way Continuous Flow

Sizes:1½″ through 8″ ANSI Class 150 & 300

Pressure Classes:150# and 300# ANSI

Connections:Flanged, Butt-Weld, or Threaded

Construction & Materials

Body Material

Carbon steel body (standard) · Optional 304 or 316 stainless steel

Operating Mechanism

Stainless steel operating shaft and internal mechanism

Seal Options

Soft-seat elastomer seals available in Buna, Viton®, or Neoprene

Maximum Pressure

Designed for pressures up to 675 PSI

Ratings

Carbon Steel valves at 200°F unless otherwise noted.

Temperature Ratings

Seal Material	Max Temp
Viton	350°F
Neoprene	250°F

Pressure Ratings (CS @ 200°F)

Connection	Rating
150 lb ANSI Flange	260 PSI
300 lb ANSI Flange	675 PSI
Butt Weld	675 PSI

Max Differential Pressure

Valve Size	Max Diff. P
1½" – 2"	100 PSI
3" – 4"	75 PSI
6" – 8"	50 PSI

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

6-Way Same-Side Continuous Flow

Same-side inlet/outlet configuration

Valve Size	A	B	C	D	E	F	G	Weight
1½" (150/300#)	6-3/8	10	3-15/16	13-3/4	20-3/16	5	5-1/2	76 lb
2" (150/300#)	6-3/4	12	3-1/2	13-3/4	20-3/16	7	6-1/4	99 lb
3" (150#)	7-3/4	14	4-1/4	16-1/4	22-3/4	7	6-3/4	161 lb
3" (300#)	8-1/2	14	4-1/4	17	23-1/2	7	6-3/4	210 lb
4" (150/300#)	10-1/4	21	5-3/8	21	28-3/4	8	7-7/8	254 lb
6" (150#)	11-1/2	26	7-9/16	25-1/4	32-13/16	9-7/8	10	431 lb
6" (300#)	13	26	7-9/16	26-3/4	34-1/8	9-7/8	10	545 lb

6-Way Opposite-Side Continuous Flow

Opposite-side inlet/outlet configuration

Valve Size	A	B	C	D	E	F	G (150#)	G (300#)	Weight
1½"	6-3/8	12	4-7/16	20-3/16	10	10	4	4	76 lb
2"	6-3/4	14	4-7/16	20-3/16	12	14	4	8	99 lb
3" (150#)	7-3/4	12	17	22-3/4	14	14	4	N/A	161 lb
3" (300#)	8-1/2	12-3/4	17-3/4	23-1/4	14	14	N/A	8	210 lb
4"	10-1/4	15-5/8	21-7/8	28-3/4	21	16-3/4	8	8	254 lb
6" (150#)	11-1/2	18-3/16	26-1/8	33-1/16	26	19-3/4	N/A	N/A	431 lb
6" (300#)	13	19-3/16	27-5/8	34-1/8	26	19-3/4	N/A	12	545 lb

6-Way Inline Continuous Flow

Inline flow configuration

Valve Size	A	B	C	D	E	F	G	H	Weight
1½"	6-3/8	10	3-15/16	13-3/4	20-3/16	4-5/16	9-3/8	7-1/16	91 lb
3" (150#)	7-3/4	14	4-1/4	16-3/4	22-3/4	7-7/8	12-1/2	11-7/8	174 lb
3" (300#)	8-1/2	14	4-1/4	17	23-3/4	9	16	12	215 lb
4"	10-1/4	21	5-3/8	21	28-3/4	9	15-5/8	21-1/16	269 lb
6"	11-1/2	26	7-9/16	25-1/4	32-13/16	9	24	34-3/4	431 lb

6-Way Split Transfer Valve

Opposite-side porting with independent top and bottom flow paths

Valve Size	A	B	C	D	E	Weight
1½"	10	5	13	14-13/16	9-1/16	100 lb
2"	12	7	15	14-13/16	9-1/16	128 lb
3" (150#)	14	7	17	16-1/2	10-3/4	208 lb
4"	21	8-3/8	19	19-1/2	13-3/8	330 lb
6"	26	9-7/8	17	21-5/16	15-1/8	600 lb

3-Way Continuous Flow Transfer Valve

Continuous-flow changeover, carbon steel or stainless steel

Valve Size	A	B	C	D	E	F	Weight
1½"	10	5	10-1/2	14-13/16	9-1/16	4-7/16	50 lb
2"	12	7	13-1/4	14-13/16	9-1/16	4-7/16	65 lb
3" (150#)	14	7	13-3/4	16-1/2	10-3/4	5-3/4	105 lb
4"	21	8-3/8	15-7/8	19-1/2	13-3/8	7-3/8	165 lb
6"	26	9-7/8	19-7/8	21-5/16	15-1/8	8-3/8	300 lb

* Approximate dimensions only. Contact factory for certified configuration-specific drawings.

Ordering Nomenclature

TV6-CS-24-SS-F1-B-B-X###

Model:TV6 (6-way), TV3 (3-way), TVS (split 6-way / twin-pack)

Body:CS (carbon steel), S2 (304L SS), S4 (316L SS)

Size:24 (1½"), 32 (2″), 48 (3″), 64 (4″), 96 (6″), 128 (8″)

Porting:SS (same-side std), OS (opposite-side std), IS (inline), XS (split)

Equalizing Valve:B (ball), G (gate), L (globe), N (none)

Seals:B (Buna), V (Viton), N (Neoprene)

Connection:F1 (150# flange), F3 (300# flange), BW (butt-weld)

Special Variation:X### (custom)

Twin-pack (dual 3-way) and high-differential-pressure variants are also available — consult factory for exact code.

Operating Instructions

Quick reference for valve changeover procedure:

1
Open equalizing/fill line valve and allow pressure to balance (larger vessels may require several minutes).
2
Turn "T" handle counterclockwise ≈6–7 turns.
3
Push ball handle down to unseat shoes.
4
Rotate ball handle 180° (red arrow points to active ports).
5
Release ball handle and hand-tighten "T" handle clockwise (20 in-lb max).
6
Close equalizing valve.

Maintenance Note

Replacement shoe assemblies, seal kits, and internal stacks are readily available and fully interchangeable with existing HYCOA systems. View spare parts overview →

Typical Applications

Duplex basket and cartridge filtration systems
Oil & gas processing
Chemical and petrochemical plants
Power generation facilities
Industrial water and wastewater systems
Any process requiring uninterrupted flow during changeover

Built for Critical Service

HICORP Transfer Valves deliver reliable, zero-leak performance in the most demanding environments — making them the trusted choice for engineers who cannot afford downtime.

These transfer valves set the industry standard for reliability in API 614 auxiliary lube oil skids, power plants, gas turbines, and heavy industrial applications.

Video Guide

Transfer Valve Rebuild — Step by Step

Watch a complete HYCOA/HICORP Transfer Valve rebuild — internal stack removal, seal replacement, sealing pad indexing, and reassembly to zero-leakage performance. HICORP internals are fully interchangeable with HYCOA JR-33 components.

Disassembly

Internal stack removal

Seal Replacement

Lip seals, O-rings & retainers

Pad Indexing

Precision sealing pad alignment

Reassembly

Return to zero-leakage spec

Spare Parts & Maintenance

HICORP Transfer Valves use the same internal components as HYCOA JR-33 series valves — meaning genuine spare parts are readily available and fully interchangeable. Three categories cover every maintenance scenario.

Shoe Assemblies

The primary sealing element. Precision-machined sealing pads with elastomeric backing provide the zero-leakage metal-to-elastomer seal. Available in Buna-N (standard) or Viton (high-temperature/chemical service) for all valve sizes.

When to replace: Replace when sealing face shows wear, elastomer has hardened or cracked, or leakage is detected at the sealing interface.

Seal Kits

Complete elastomeric rebuild kits containing every sealing component — lip seals, O-rings, seal retainers, and bonnet gaskets — for a full valve rebuild. Available in Buna-N or Viton, sized to your valve and end connection type.

When to replace: Replace at any scheduled maintenance interval or whenever the valve is opened for internal inspection.

Internal Stack Assembly

The complete modular internal mechanism — operating shaft, sealing pads, slide/link assemblies, sleeves, separator plate, and all sealing elements — as a single replaceable unit. Valve body stays in the line.

When to replace: Replace when shaft or slide/link wear is found, or as a cost-effective alternative to individual component repair after extended service.

HYCOA JR-33 Compatible — One Spare Parts Inventory

HICORP valve internals are fully interchangeable with HYCOA JR-33 components. If you operate both valve types, a single spare parts inventory covers your entire fleet — simplifying procurement and reducing on-shelf stock requirements.

View Spare Parts Overview Request Spare Parts Quote

Frequently Asked Questions

Ready to Specify HICORP Valves?

Contact Northeast Controls for sizing assistance, drawings, pressure-drop curves, or a quotation. Custom configurations, materials, and testing available.

Request Price & Delivery 201-419-6111 [email protected]

HYCOA® JR-33

Select a Valve

Help Me Choose

Answer 3 questions → get a recommendation
