What is a 6-Way Split transfer valve?

A 6-Way Split transfer valve (also called a twin-pack or dual 3-way) uses opposite-side porting with independent top and bottom flow paths. It effectively combines two 3-way valves in a single body, allowing two separate process streams to be switched simultaneously — each stream directed to one of two equipment trains.

What sizes are available for the HICORP 6-Way Split valve?

Available in 1½", 2", 3", 4", and 6" with ANSI Class 150 or Class 300 flanged connections.

What applications use the split configuration?

The split configuration is used when two separate process streams must be switched simultaneously — for example, in dual-stream lube oil systems or applications where two independent circuits share a common duplex filter arrangement.

Can the split valve replace a HYCOA twin-pack?

Yes. HICORP split valve internals are fully interchangeable with HYCOA JR-33 components. Contact Northeast Controls with your existing model number for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

HICORP · 6-Way Configuration

6-Way Split Transfer Valve

Name: HICORP 6-Way Split Transfer Valve
Brand: HICORP
Availability: InStock

Dual Stream · Simultaneous Switching · API 614 Compliant

Two independent flow paths in a single valve body — both streams switch simultaneously with a single operator action. The compact solution for dual-stream lube oil and process systems that require synchronized changeover.

Request a Quote 201-419-6111

Two Streams, One Valve, One Operation

The 6-Way Split configuration uses opposite-side porting with independent top and bottom flow paths. It functions as two 3-way valves in a single body — both streams are switched simultaneously with a single operator action, ensuring synchronized changeover without the risk of misaligned valve positions.

This configuration is used in dual-stream lube oil systems, applications with two independent circuits sharing a common duplex filter arrangement, and any process where two streams must always be directed to the same equipment train at the same time.

Sizes:1½″ through 6″

Connections:ANSI 150# flange, 300# flange, or butt-weld

Body:Carbon steel (standard) or 304L / 316L stainless

Seals:Buna-N, Viton® (350°F max), or Neoprene (250°F max)

Max Pressure:675 PSI (300# / butt-weld) · 260 PSI (150#)

Standard Features

Dual independent flow paths in a single valve body

Opposite-side porting — both streams switch simultaneously

Positive mechanical shoe-seal — zero leakage in both positions

Continuous flow changeover — no shutdown or pressure loss

Stainless steel operating shaft and internal mechanism

API 614 designed and tested

Flanged (150# / 300#) or butt-weld connections

Internals interchangeable with HYCOA JR-33

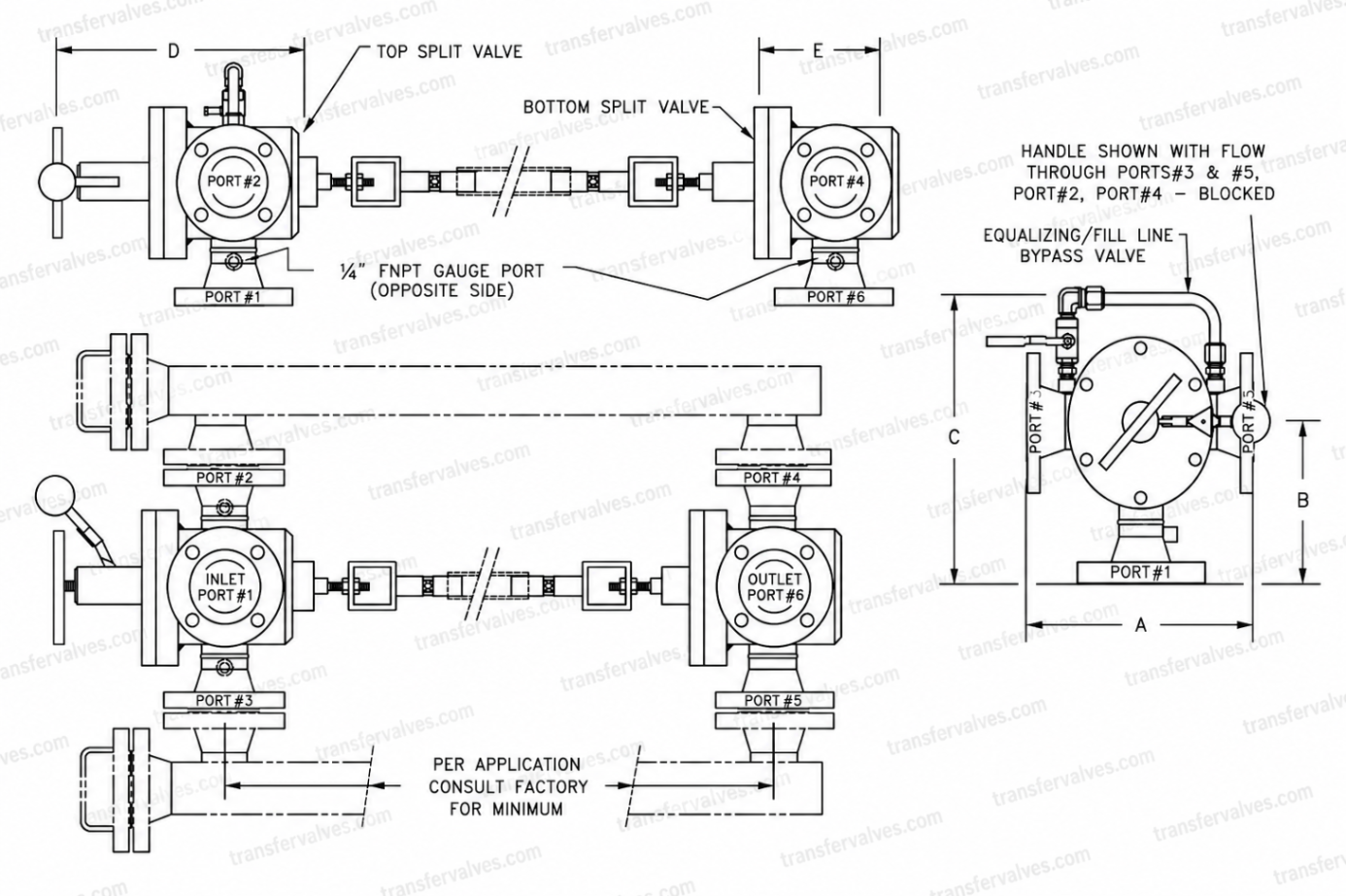

HICORP 6-Way Split Transfer Valve dimensional drawing showing top split valve, bottom split valve, inlet port #1, outlet port #6, ports #2–#5, equalizing/fill line bypass valve, and labeled dimensions A–E

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

Valve Size	A	B	C	D	E	Weight
1½"	10	5	13	14-13/16	9-1/16	100 lb
2"	12	7	15	14-13/16	9-1/16	128 lb
3" (150#)	14	7	17	16-1/2	10-3/4	208 lb
4"	21	8-3/8	19	19-1/2	13-3/8	330 lb
6"	26	9-7/8	17	21-5/16	15-1/16	600 lb

Contact factory for certified configuration-specific drawings.

Pressure & Temperature Ratings

150# ANSI Flange

260 PSI

Carbon Steel @ 200°F

300# ANSI Flange

675 PSI

Carbon Steel @ 200°F

Butt Weld

675 PSI

Carbon Steel @ 200°F

Operating Instructions

1
Open equalizing/fill line valve and allow pressure to balance on both streams.
2
Turn "T" handle counterclockwise ≈6–7 turns.
3
Push ball handle down to unseat shoes on both flow paths.
4
Rotate ball handle 180° (red arrow points to active ports).
5
Release ball handle and hand-tighten "T" handle clockwise (20 in-lb max).
6
Close equalizing valve.

Frequently Asked Questions

Other HICORP Configurations

6-Way Same-Side 6-Way Opposite-Side 6-Way Inline 3-Way

← Back to all HICORP Transfer Valves

Ready to Specify the 6-Way Split Valve?

Contact Northeast Controls for sizing assistance, certified drawings, or a quotation.

Request Price & Delivery 201-419-6111 [email protected]
