What is a 6-Way Opposite-Side transfer valve?

A 6-Way Opposite-Side transfer valve has the common inlet on one side of the valve body and both equipment-train outlets on the opposite side. This configuration suits installations where the supply line and the two equipment trains approach from opposite directions.

What sizes are available?

Available in 1½", 2", 3", 4", and 6" with ANSI Class 150 or Class 300 flanged connections.

How does opposite-side porting differ from same-side?

In the same-side configuration all three connections (inlet + two outlets) are on the same face. In the opposite-side configuration the inlet is on one face and the two outlets are on the opposite face, which can simplify piping when the supply and equipment trains approach from different directions.

Are HICORP opposite-side valves interchangeable with HYCOA JR-33?

Yes. HICORP internals are fully interchangeable with HYCOA JR-33 components. Contact Northeast Controls with your existing model number for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

HICORP · 6-Way Configuration

6-Way Opposite-Side Continuous Flow Transfer Valve

Name: HICORP 6-Way Opposite-Side Transfer Valve
Brand: HICORP
Availability: InStock

Zero Leakage · Opposite-Side Porting · API 614 Compliant

Inlet on one side, both equipment-train outlets on the opposite side. Ideal when the supply line and equipment trains approach from different directions, eliminating crossover piping.

Request a Quote 201-419-6111

Opposite-Side Porting — Flexible Installation

The 6-Way Opposite-Side configuration places the common inlet on one face of the valve body and both equipment-train outlets on the opposite face. This suits installations where the supply header and the two equipment trains (filters, coolers, or pumps) approach from opposite directions, reducing the need for elbows and crossover piping.

The positive mechanical shoe-seal system provides true zero-leakage shutoff in both positions. Changeover is accomplished without shutdown, pressure loss, or the need for spectacle blinds.

Sizes:1½″ through 6″

Connections:ANSI 150# flange, 300# flange, or butt-weld

Body:Carbon steel (standard) or 304L / 316L stainless

Seals:Buna-N, Viton® (350°F max), or Neoprene (250°F max)

Max Pressure:675 PSI (300# / butt-weld) · 260 PSI (150#)

Standard Features

Inlet on one side, both outlets on the opposite side

Positive mechanical shoe-seal — zero leakage in both positions

Continuous flow changeover — no shutdown or pressure loss

Stainless steel operating shaft and internal mechanism

Low operating torque — manual or actuated operation

API 614 designed and tested

Flanged (150# / 300#) or butt-weld connections

Internals interchangeable with HYCOA JR-33

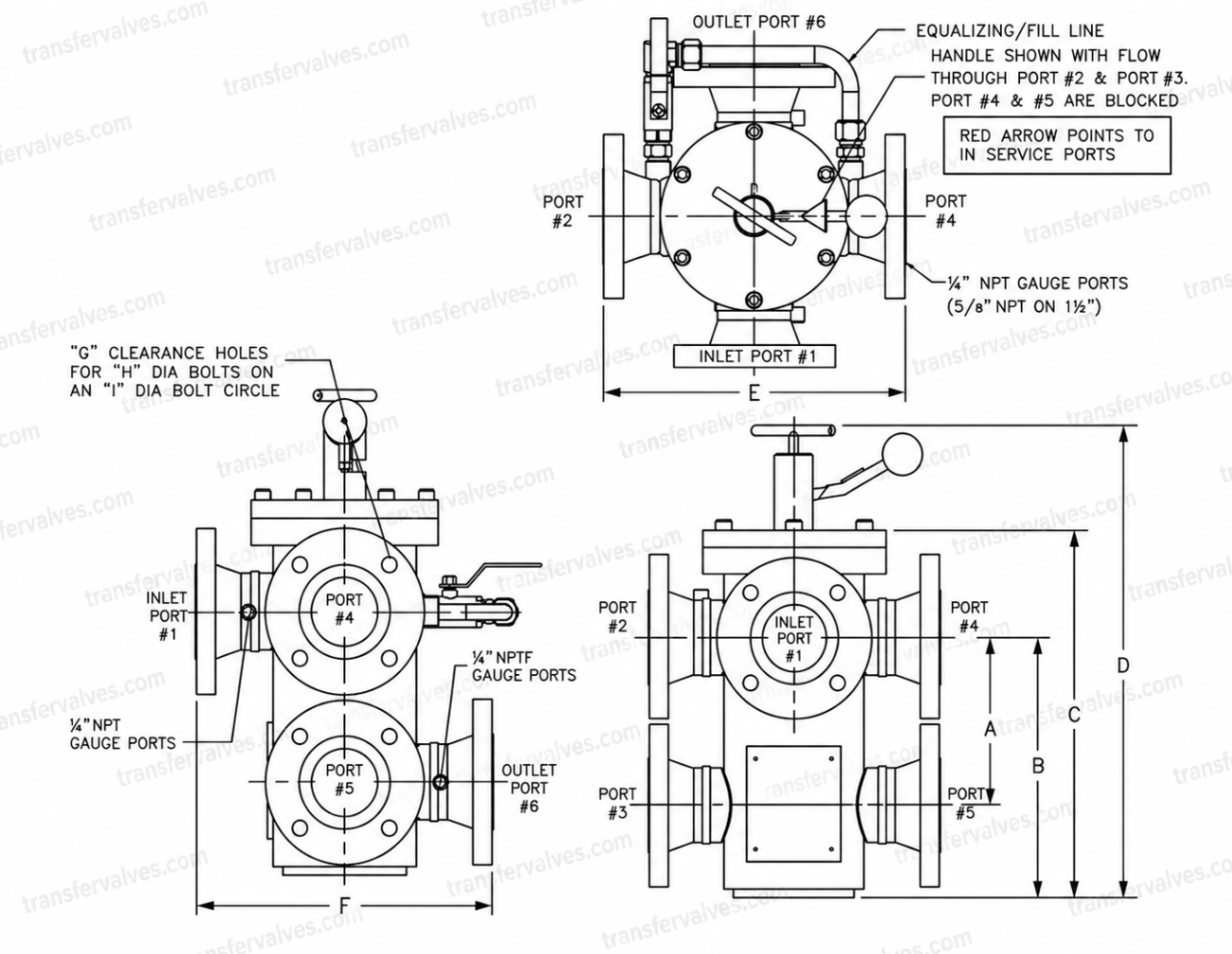

HICORP 6-Way Opposite-Side Transfer Valve dimensional drawing showing port layout with inlet port #1, outlet port #6, and labeled dimensions A–F

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

Valve Size	A	B	C	D	E	F	G (150#)	G (300#)	Weight
1½"	6-3/8	12	4-7/16	20-3/16	10	10	4	4	76 lb
2"	6-3/4	14	4-7/16	20-3/16	12	14	4	8	99 lb
3" (150#)	7-3/4	12	17	22-3/4	14	14	4	N/A	161 lb
3" (300#)	8-1/2	12-3/4	17-3/4	23-1/4	14	14	N/A	8	210 lb
4"	10-1/4	15-5/8	21-7/8	28-3/4	21	16-3/4	8	8	254 lb
6" (150#)	11-1/2	18-3/16	26-1/8	33-1/16	26	19-3/4	N/A	N/A	431 lb
6" (300#)	13	19-3/16	27-5/8	34-1/8	26	19-3/4	N/A	12	545 lb
