What is a 6-Way Inline transfer valve?

A 6-Way Inline transfer valve routes flow so that the inlet and the active outlet are in-line with each other — the flow path through the active equipment train is straight through the valve body. This minimizes pressure drop and is preferred in high-flow or pressure-sensitive applications.

What sizes are available for the HICORP 6-Way Inline valve?

Available in 1½", 3", 4", and 6" with ANSI Class 150 or Class 300 flanged connections.

Why choose inline over same-side or opposite-side?

The inline configuration provides the lowest pressure drop of the 6-way configurations because the active flow path is straight through the valve. It is the preferred choice for turbine lube oil and compressor seal oil systems where pressure drop is critical.

Are HICORP inline valves interchangeable with HYCOA JR-33?

Yes. HICORP internals are fully interchangeable with HYCOA JR-33 components. Contact Northeast Controls with your existing model number for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

HICORP · 6-Way Configuration

6-Way Inline Continuous Flow Transfer Valve

Name: HICORP 6-Way Inline Transfer Valve
Brand: HICORP
Availability: InStock

Minimum Pressure Drop · Straight-Through Flow · API 614 Compliant

The inline configuration routes the active flow path straight through the valve body — delivering the lowest pressure drop of any 6-way configuration. The preferred choice for turbine lube oil, compressor seal oil, and other pressure-sensitive systems.

Request a Quote 201-419-6111

Straight-Through Flow — Minimum Pressure Drop

In the 6-Way Inline configuration, the inlet and the active outlet port are aligned on the same axis — the fluid travels in a straight line through the valve body to the active equipment train. This eliminates the directional changes present in same-side and opposite-side configurations, resulting in the lowest possible pressure drop.

This makes the inline configuration the standard choice for API 614 turbine lube oil skids, compressor seal oil systems, and any application where minimizing pressure drop is a design requirement.

Sizes:1½″, 3″, 4″, 6″

Connections:ANSI 150# flange, 300# flange, or butt-weld

Body:Carbon steel (standard) or 304L / 316L stainless

Seals:Buna-N, Viton® (350°F max), or Neoprene (250°F max)

Max Pressure:675 PSI (300# / butt-weld) · 260 PSI (150#)

Standard Features

Straight-through active flow path — lowest pressure drop

Positive mechanical shoe-seal — zero leakage in both positions

Continuous flow changeover — no shutdown or pressure loss

Stainless steel operating shaft and internal mechanism

Low operating torque — manual or actuated operation

API 614 designed and tested

Flanged (150# / 300#) or butt-weld connections

Internals interchangeable with HYCOA JR-33

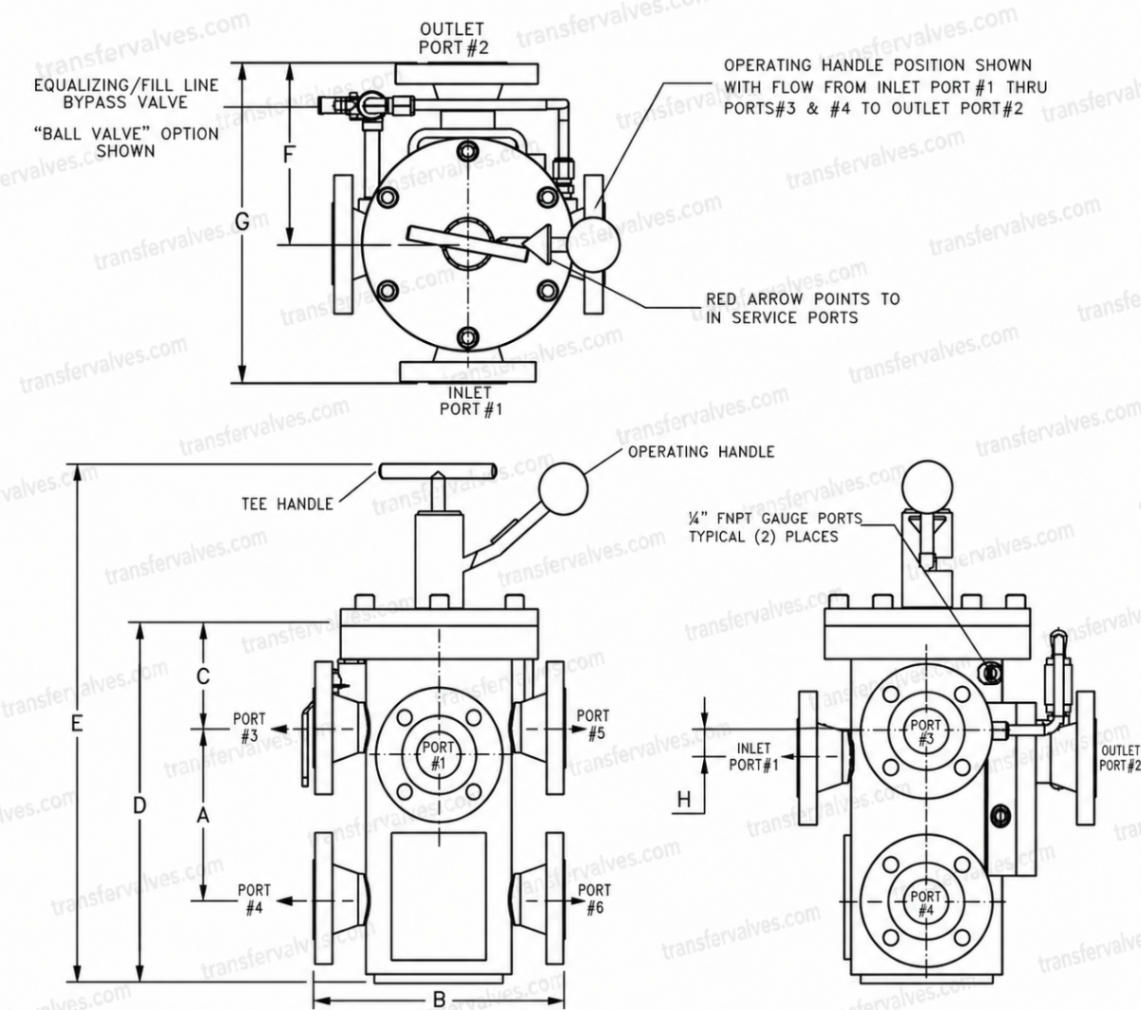

HICORP 6-Way Inline Transfer Valve dimensional drawing showing front and side views with labeled dimensions A–H, port layout, tee handle, and operating handle positions

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

Valve Size	A	B	C	D	E*	F	G	H	Weight
1-1/2"	6-3/8	10	3-15/16	13-3/4	20-3/16	4-15/16	9-3/8	1	91 lbs
2"	6-3/4	12	3-1/2	13-3/4	20-3/16	6-1/4	12	7/16	114 lbs
3" (150#)	7-3/4	14	4-1/4	16-1/4	22-3/4	6-7/8	12-1/2	1/8	176 lbs
3" (300#)	8-1/2	14	4-1/4	17	23-3/4	9	16	1/2	215 lbs
4"	10-1/4	21	5-3/8	21	28-3/4	9	15-5/8	2-11/16	269 lbs
6"	11-1/2	26	7-9/16	25-1/4	32-13/16	12	24	4-3/4	480 lbs
