What is a 6-Way Same-Side transfer valve?

A 6-Way Same-Side transfer valve routes flow from a single inlet to one of two outlet trains — with the inlet and both outlets on the same side of the valve body. This configuration is ideal for duplex filter or cooler switching where the piping runs parallel on one side of the equipment.

What sizes are available for the HICORP 6-Way Same-Side valve?

The HICORP 6-Way Same-Side valve is available in 1½", 2", 3", 4", and 6" sizes with ANSI Class 150 or Class 300 flanged connections.

What is the pressure rating?

Class 150 ANSI flanged connections are rated at 260 PSI at 200°F. Class 300 and butt-weld connections are rated at 675 PSI at 200°F.

Can this valve replace an existing HYCOA JR-33 same-side valve?

Yes. HICORP internals are fully interchangeable with HYCOA JR-33 components and the valve is available in standard ANSI face-to-face dimensions. Contact Northeast Controls with your existing model number for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

HICORP · 6-Way Configuration

6-Way Same-Side Continuous Flow Transfer Valve

Name: HICORP 6-Way Same-Side Transfer Valve
Brand: HICORP
Availability: InStock

Zero Leakage · Same-Side Porting · API 614 Compliant

Routes flow from a single inlet to one of two outlet trains — inlet and both outlets on the same side of the valve body. Ideal for duplex filter and cooler switching where parallel piping runs on one side of the equipment.

Request a Quote 201-419-6111

Same-Side Porting — Simplified Piping

The 6-Way Same-Side configuration places the common inlet and both equipment-train outlets on the same face of the valve body. This eliminates the need for crossover piping and simplifies installation in tight equipment bays where both filter vessels or coolers are mounted side-by-side.

Like all HICORP valves, the positive mechanical shoe-seal system retracts during changeover — eliminating friction and wear — then locks into place for true zero-leakage shutoff. No spectacle blinds, no shutdown, no pressure loss.

Sizes:1½″ through 6″

Connections:ANSI 150# flange, 300# flange, or butt-weld

Body:Carbon steel (standard) or 304L / 316L stainless

Seals:Buna-N, Viton® (350°F max), or Neoprene (250°F max)

Max Pressure:675 PSI (300# / butt-weld) · 260 PSI (150#)

Standard Features

Inlet and both outlets on the same side — simplified piping layout

Positive mechanical shoe-seal — zero leakage in both positions

Continuous flow changeover — no shutdown or pressure loss

Stainless steel operating shaft and internal mechanism

Low operating torque — manual or actuated operation

API 614 designed and tested

Flanged (150# / 300#) or butt-weld connections

Internals interchangeable with HYCOA JR-33

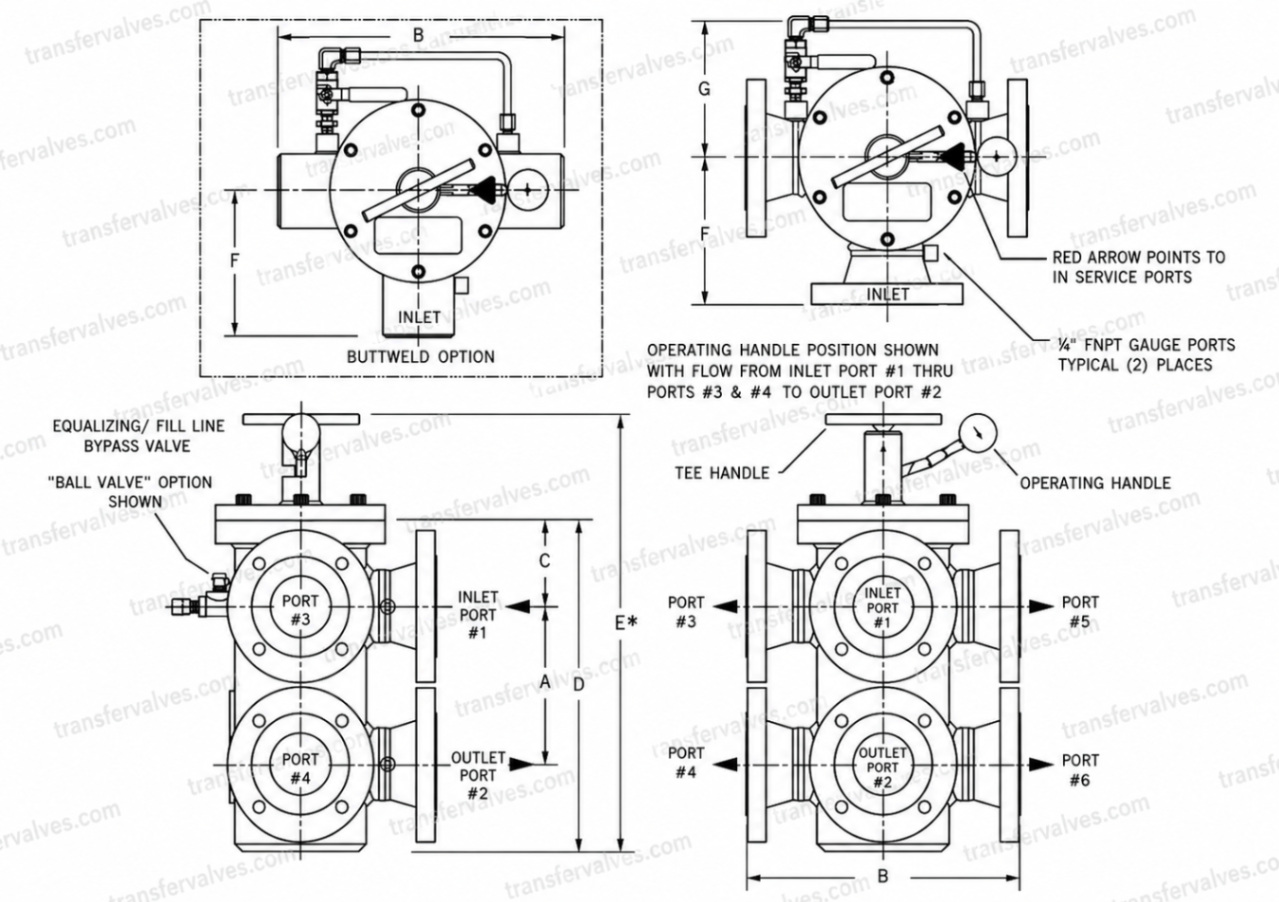

HICORP 6-Way Same-Side Transfer Valve dimensional drawing showing butt-weld option, port layout, and labeled dimensions A–G

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

Valve Size	A	B	C	D	E	F	G	Weight
1½" (150/300#)	6-3/8	10	3-15/16	13-3/4	20-3/16	5	5-1/2	76 lb
2" (150/300#)	6-3/4	12	3-1/2	13-3/4	20-3/16	7	6-1/4	99 lb
3" (150#)	7-3/4	14	4-1/4	16-1/4	22-3/4	7	6-3/4	161 lb
3" (300#)	8-1/2	14	4-1/4	17	23-1/2	7	6-3/4	210 lb
4" (150/300#)	10-1/4	21	5-3/8	21	28-3/4	8	7-7/8	254 lb
6" (150#)	11-1/2	26	7-9/16	25-1/4	32-13/16	9-7/8	10	431 lb
6" (300#)	13	26	7-9/16	26-3/4	34-1/8	9-7/8	10	545 lb

Contact factory for certified configuration-specific drawings.

Pressure & Temperature Ratings

150# ANSI Flange

260 PSI

Carbon Steel @ 200°F

300# ANSI Flange

675 PSI

Carbon Steel @ 200°F

Butt Weld

675 PSI

Carbon Steel @ 200°F

Max Diff. Pressure (1½"–2")100 PSI

Max Diff. Pressure (3"–4")75 PSI

Max Diff. Pressure (6")50 PSI

Operating Instructions

1
Open equalizing/fill line valve and allow pressure to balance.
2
Turn "T" handle counterclockwise ≈6–7 turns.
3
Push ball handle down to unseat shoes.
4
Rotate ball handle 180° (red arrow points to active ports).
5
Release ball handle and hand-tighten "T" handle clockwise (20 in-lb max).
6
Close equalizing valve.

Note: An equalizing line is required for proper operation. Consult factory if your system does not include one.

Frequently Asked Questions

Other HICORP Configurations

6-Way Opposite-Side 6-Way Inline 6-Way Split 3-Way

← Back to all HICORP Transfer Valves

Ready to Specify the 6-Way Same-Side Valve?

Contact Northeast Controls for sizing assistance, certified drawings, pressure-drop curves, or a quotation.

Request Price & Delivery 201-419-6111 [email protected]
