What is a HICORP 3-Way transfer valve?

A HICORP 3-Way transfer valve diverts flow from a single inlet to one of two outlet trains — or from one of two inlet trains to a single outlet — in a continuous-flow changeover. It uses the same positive mechanical shoe-seal technology as the 6-way valves for zero-leakage shutoff.

What sizes are available for the HICORP 3-Way valve?

Available in 1½", 2", 3", 4", and 6" with ANSI Class 150 or Class 300 flanged connections. Carbon steel or stainless steel body.

How does the 3-Way differ from the 6-Way?

A 3-Way valve has three ports — one common and two equipment-train ports — and switches one stream between two trains. A 6-Way valve has six ports and switches two streams (supply and return) simultaneously between two trains, providing complete isolation of the off-line train.

Can the HICORP 3-Way replace an existing HYCOA 3-Way valve?

Yes. HICORP internals are fully interchangeable with HYCOA JR-33 components. Contact Northeast Controls with your existing model number for a direct replacement recommendation.

Zero Leakage and Zero Frictional Drag

201-419-6111| [email protected]|8:30am – 4:30pm EST, Mon–Fri

Northeast
Controls Inc.

HICORP · 3-Way Configuration

3-Way Continuous Flow Transfer Valve

Name: HICORP 3-Way Transfer Valve
Brand: HICORP
Availability: InStock

Zero Leakage · Single-Stream Diverter · API 614 Compliant

Diverts a single process stream from one equipment train to another — continuously, without shutdown or pressure loss. Available in carbon steel or stainless steel, 1½″ through 6″.

Request a Quote 201-419-6111

Single-Stream Continuous Flow Diverter

The HICORP 3-Way valve has three ports — one common and two equipment-train ports — and diverts a single process stream between two trains without interrupting flow. It is the compact solution when only one stream (supply or return, not both) needs to be switched.

For applications requiring complete isolation of the off-line train on both supply and return, two 3-Way valves or a single 6-Way valve are used. The 3-Way is often the right choice for simpler single-circuit switching, or where space constraints make a 6-Way impractical.

Available in carbon steel or 304L / 316L stainless steel with Buna-N, Viton®, or Neoprene seals to match your process fluid and temperature requirements.

Sizes:1½″ through 6″

Connections:ANSI 150# flange, 300# flange, or butt-weld

Body:Carbon steel (standard) or 304L / 316L stainless

Seals:Buna-N, Viton® (350°F max), or Neoprene (250°F max)

Max Pressure:675 PSI (300# / butt-weld) · 260 PSI (150#)

Standard Features

Single inlet to one of two outlet trains — or reverse

Positive mechanical shoe-seal — zero leakage in both positions

Continuous flow changeover — no shutdown or pressure loss

Stainless steel operating shaft and internal mechanism

Low operating torque — manual or actuated operation

API 614 designed and tested

Flanged (150# / 300#) or butt-weld connections

Available in carbon steel or 304L / 316L stainless steel

Internals interchangeable with HYCOA JR-33

3-Way vs. 6-Way — Which Do You Need?

Choose the 3-Way when:

Only one stream (supply or return) needs switching
Space constraints limit valve size
A simpler single-circuit diverter is sufficient
Two 3-Way valves will be used for full isolation

Choose the 6-Way when:

Both supply and return must switch simultaneously
Complete isolation of the off-line train is required
A single valve replaces two 3-Way valves
API 614 duplex filter switching is specified

View 6-Way configurations

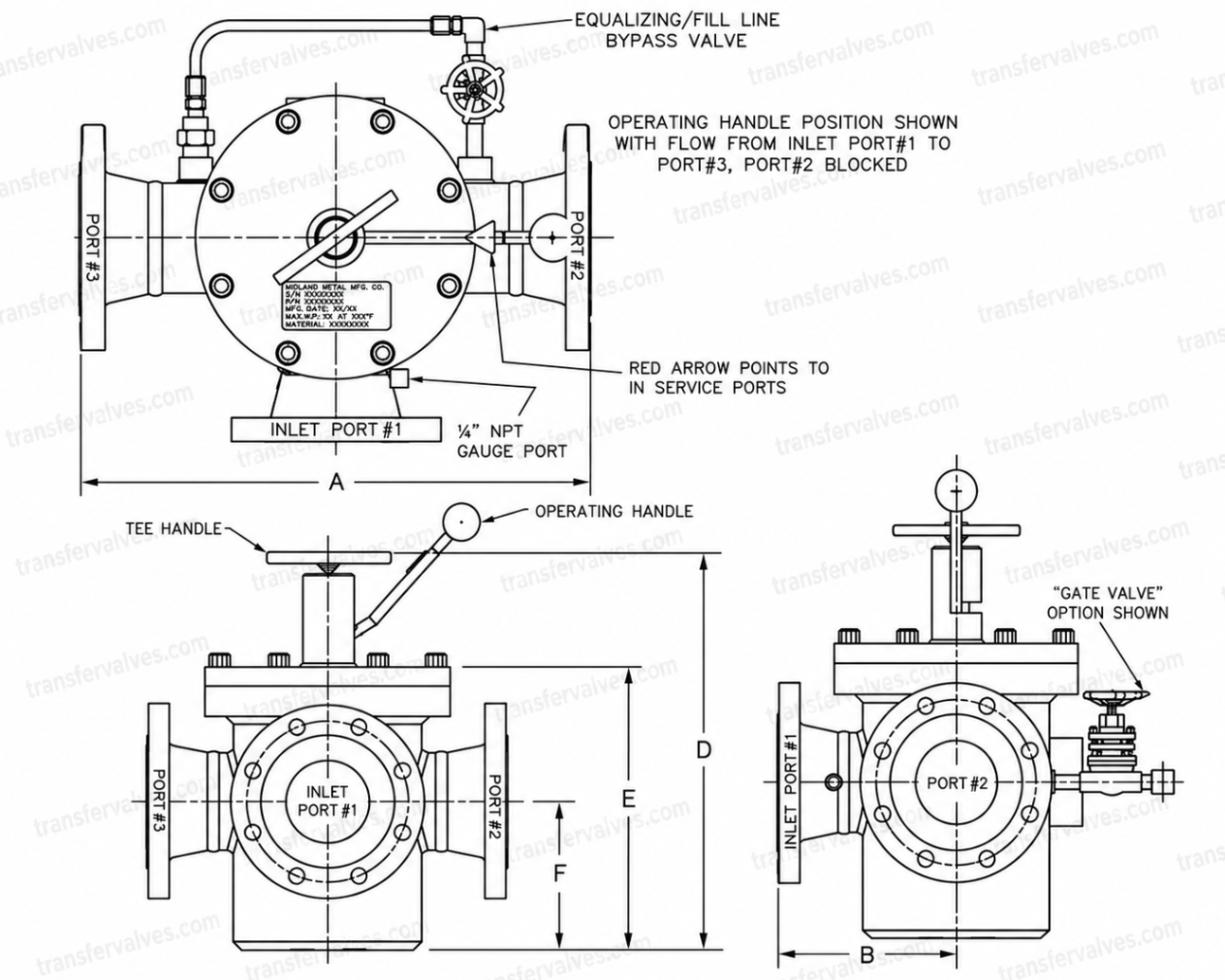

HICORP 3-Way Transfer Valve dimensional drawing showing top view with inlet port #1, port #2, port #3, equalizing/fill line bypass valve, tee handle, operating handle, ¼″ NPT gauge port, and labeled dimensions A–F with gate valve option

Approximate Dimensions

All dimensions in inches. Consult factory for certified drawings.

Valve Size	A	B	C	D	E	F	Weight
1½"	10	5	10-1/2	14-13/16	9-1/16	4-7/16	50 lb
2"	12	7	13-1/4	14-13/16	9-1/16	4-7/16	65 lb
3" (150#)	14	7	13-3/4	16-1/2	10-3/4	5-3/4	105 lb
4"	21	8-3/8	15-7/8	19-1/2	13-3/8	7-3/8	165 lb
6"	26	9-7/8	19-7/8	21-5/16	15-1/16	8-3/8	300 lb
